Technical Parameters

l  Model:Win-M

l  Working area: max.1800 (3-head machine) /max.3600mm (6-head machine)

l  Laser wavelength:10640nm

l  Laser power: based on request

l  Spot quality:0.23mm@300*300mm

l  Repeatibility:<8 urad

l  Long-term drit over 8hrs: <0.2mrad

l  Max.markign speed: 10000mm/s

l  Max.positioning speed:15000mm/s

l  Cutting Depth: Depends on materials

l  Cooling Method: Industrial Circulation Water Chiller

l  Aiming and Positioning: redlight preview

l  Working Voltage: 220V/380V 50/60Hz

l  Machine Dimensions/Net Weight: depends on multi-unit amount.

Features and Advantages

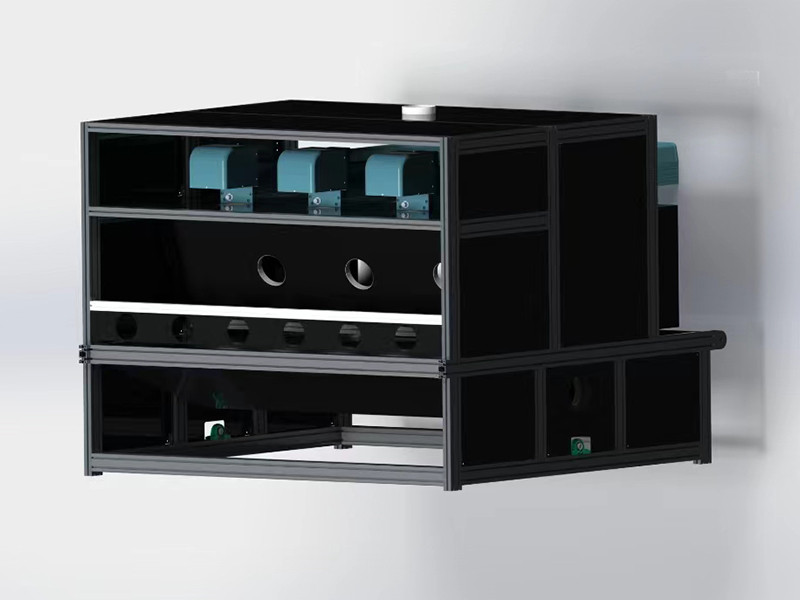

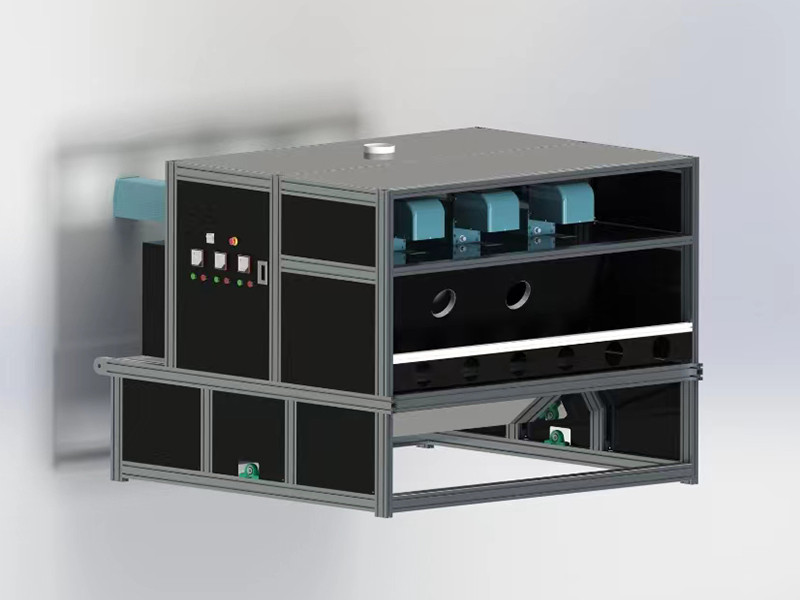

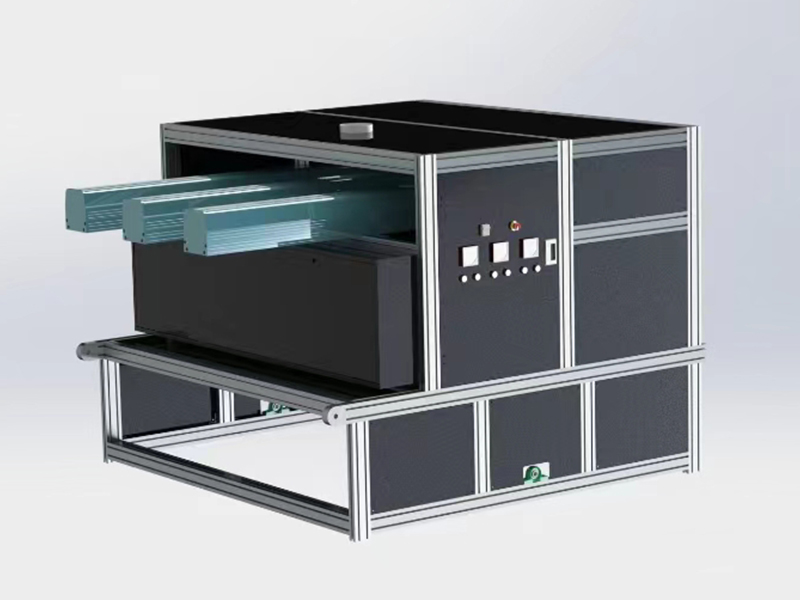

l  This multi-heads laser marking machine is designed and mainly used for cutting thin materials, such as fabrics, films, etc.With the addition of a conveyor belt, batch processing of roll materials can be realized. The number of galvanometers can be equipped with up to 6 scanheads according to the width of the material and the requirements for effect efficiency. With a cutting range of 3600mm(6 scanheads), the efficiency is much higher than that of XY-axis laser cutting machines. The more complex the graphics, the more obvious the efficiency advantage will be turned up.

l  Linear optical design logic with lower power loss. Machine housing dimension can be customized. Support different CO2 laser power.

l  Stable Performance, Simple Operation, Simple Field Drawing can be Performed. Supporting Files: DXF, PLT, AI, LXD, etc.

l  Specially developed software can automatically segment patterns, distribute transmission data, and automatically adjust focus according to the thickness of the fabric.

l  Additional software function: automatic feeding function

Application and Delivery

l  1 Year Warranty for the Whole Machine
