Technical Parameters

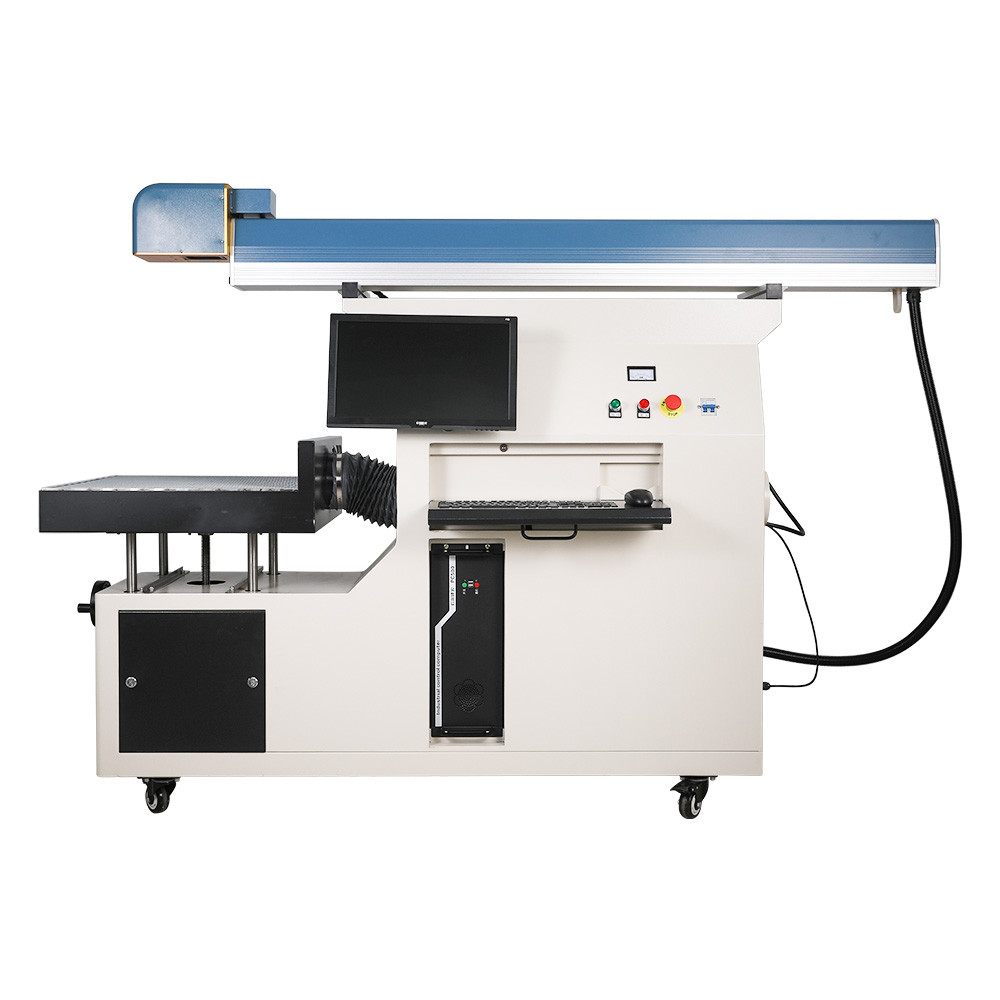

l  Model:Win-G

l  Working area: 300*300/400*400/500*500/600*600mm

l  Laser wavelength:10640nm

l  Laser power: glasstube 100W

l  Spot quality:0.23mm@300*300mm

l  Repeatibility:<8 urad

l  Long-term drit over 8hrs: <0.2mrad

l  Max.markign speed: 10000mm/s

l  Max.positioning speed:15000mm/s

l  Cutting Depth: Depends on materials

l  Cooling Method: Industrial Circulation Water Chiller

l  Aiming and Positioning: redlight preview

l  Working Voltage: 220V/380V 50/60Hz

l  Machine Dimensions/Net Weight: 230*65*160cm. 170KG.

Features and Advantages

l  It is the most super cost-effective laser marking machine since it can achieve most of laser marking job that RF laser machine do. Most non-metal material application can be applicated through this super machine, laser marking, laser cutting, laser engraving. Therefore, it is one of the most cost saving investigations you worth.

l  Stable Performance, Simple Operation, Simple Field Drawing can be Performed. Supporting Files: DXF, PLT, AI, LXD, etc.

l  Optical software function available: 3D surface laser marking, engraving, CCD.

Application and Delivery

l  1 Year Warranty for the Whole Machine

l  Factory Direct Sale, Offer Customer and Technical Support.
